6GHZ Free Space Path Loss
We have wrote about Free Space Path Loss on this blog. Take a look at this article to understand what it is: https://semfionetworks.com/blog/free-space-path-loss-diagrams/
In this article, we are going to focus on what Free Space Path Loss will look like on the 6GHz frequency band.

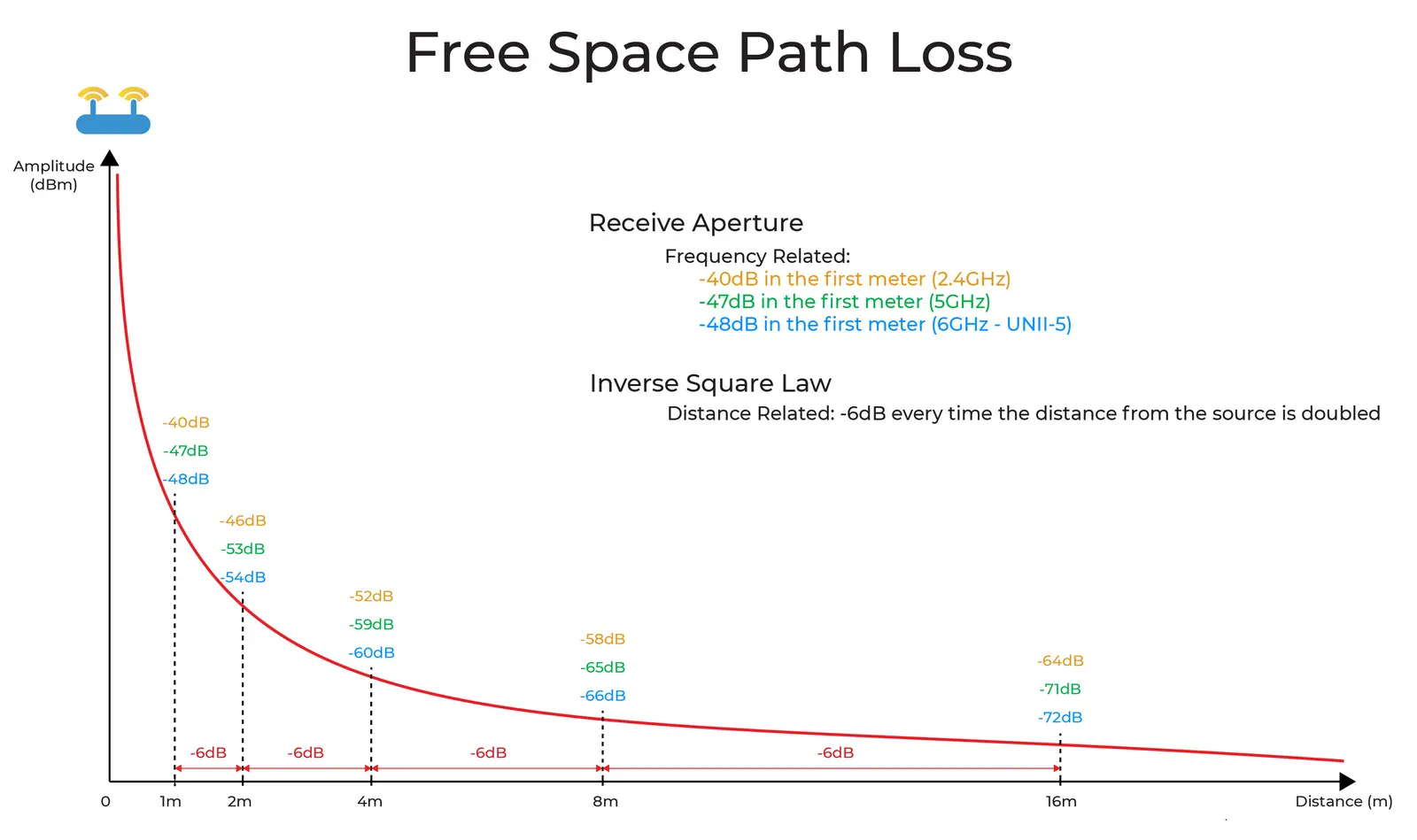

To start with, here is the updated FSPL diagram including the 6GHz loss:
6GHZ CHANNELS

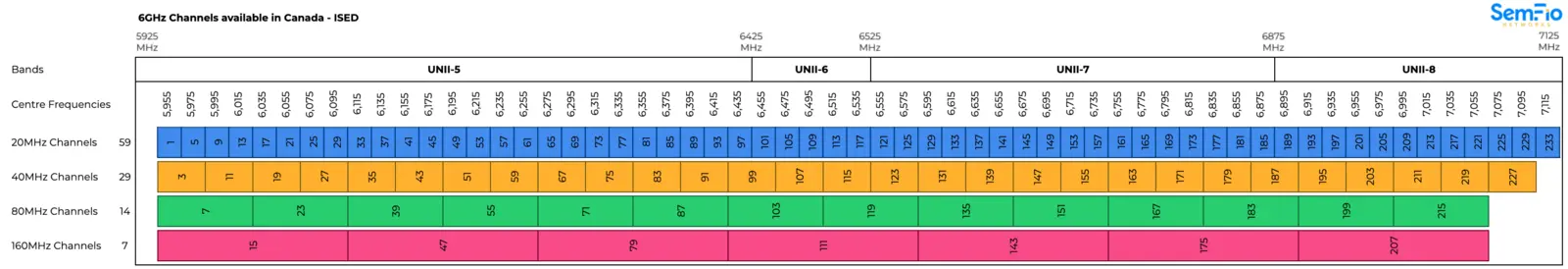

The following table presents the different channels that will be available for Wi-Fi use in the 6GHz frequency band in Canada (click to enlarge):
If you want to take a deeper look at which channels are defined by the IEEE 802.11ax amendment, take a look at this document put together by Josh Schmelzle that details the different 6GHz channels: https://docs.google.com/spreadsheets/d/1C7RxH1R3aRgvO0aeL-b79n6_W5vbcMVynqW9FlDZoLg/edit#gid=1958479420
FSPL CALCULATIONS
As a reminder, here is what the Free Space Path Loss formula looks like:
When we calculate the FSPL after 1m on each of the 6GHz channels, we get an average loss of 48.74dB across the entire 6GHz band. Here are the average per sub-bands:
- UNII-5 Average: 48.29dB
- UNII-6 Average: 48.70dB
- UNII-7 Average: 48.99dB
- UNII-8 Average: 49.23dB

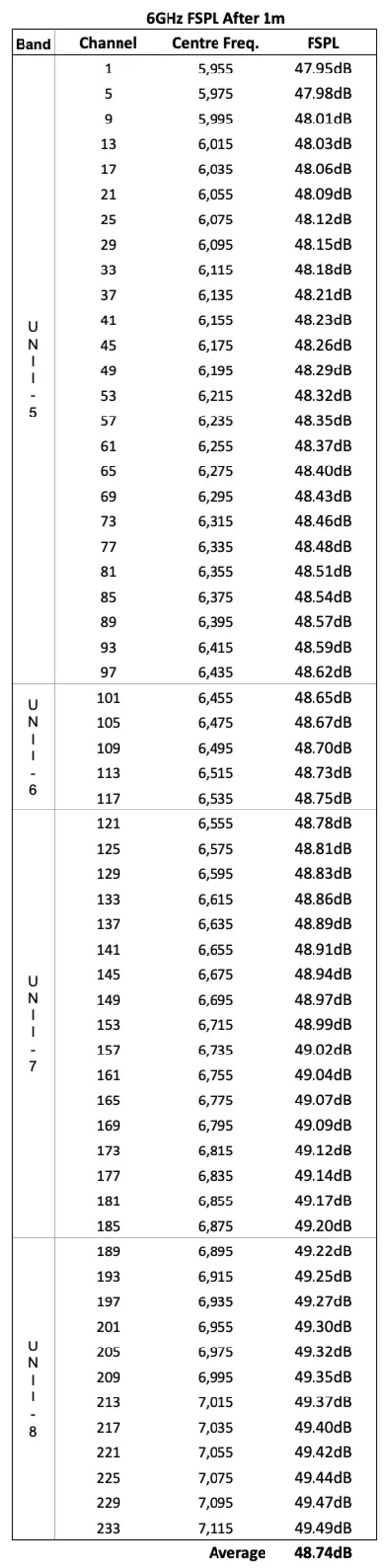

Here is a table the details these results:
If you prefer looking at it in an Excel format, take a look at this document: https://docs.google.com/spreadsheets/d/e/2PACX-1vQEwWKcjUQVJSuAy5IwR4h_u5Vpo0t4dIr2ds82Q-JgVMPavXNiYv9aHmZtRHDu43193TU6n2oZAsyb/pubhtml?gid=0&single=true
