Popular IoT Protocols
INTRODUCTION
The Internet of Things (IoT) is a network of physical objects such as sensors, actuators, and devices that are connected to the Internet. These devices communicate with each other and with the cloud to provide various services to users. To enable this communication, several IoT protocols have been developed so far, each with its own unique features and characteristics. In this blog post, we will explore five popular IoT protocols: Bluetooth, BLE, ZigBee, Thread, LoRa, LoRaWAN and LTE-M.
BLUETOOTH
The IEEE standard for Bluetooth is IEEE 802.15.1. It is a wireless technology that enables short-range communication between devices. It was first introduced in 1994 by Ericsson, and it has since become one of the most widely used wireless technologies in the world. Bluetooth operates in the 2.4 GHz frequency band, uses FHSS technology, and supports data rates up to 24 Mbps. Bluetooth is well suited for applications that require low power consumption and short-range communication.
One of the main advantages of Bluetooth is its widespread adoption. Almost every smartphone, laptop, and tablet on the market today supports Bluetooth, which makes it an attractive option for developers who want to build IoT applications that can communicate with these devices. Bluetooth is also relatively easy to use and has a low implementation cost, which makes it an attractive option for small-scale IoT projects.
BLE
Bluetooth Low Energy (BLE) is a variant of Bluetooth that is designed for low power consumption. BLE was first introduced in 2010, and it has since become a popular option for wearable devices, healthcare devices, and home automation systems. BLE operates in the same frequency band as Bluetooth and supports data rates up to 2 Mbps. BLE is well suited for applications that require low power consumption and periodic data transmission.
One of the main advantages of BLE is its low power consumption. BLE devices can operate for months or even years on a single battery, which makes it an attractive option for IoT applications that require long battery life. BLE is also relatively easy to use and has a low implementation cost, which makes it an attractive option for small-scale IoT projects. The table below compares different Bluetooth version capabilities.
| Bluetooth 2.1 | Bluetooth4.0 (LE) | Bluetooth 5.0 (LE) | |
|---|---|---|---|
| Range | 100 meters | 100 meters | 400 meters |
| Max range(free space) | 100 meters | 100 meters | 1000 meters |
| Data Rate | 1-3 Mbps | 1 Mbps | 2 Mbps |
| Application Throughput | 0.7-2.1 Mbps | Up to 305 Kbps | Up to 1.36 Mbps |
| Topologies | Point-to-Point | Point-to-Point, Broadcast | Point-to-Point, Broadcast, Mesh |
In the WLAN industry, BLE is being used in a variety of ways. For example, it can be used to enable proximity-based services, such as location-based advertising or wayfinding. BLE radios can be placed throughout a building to help users navigate to a specific location. BLE can also be used to track assets, such as equipment or inventory, within a building.
Another use case for BLE in the WLAN industry is to enable indoor positioning systems. By using BLE beacons, users can be located within a building with an accuracy of a few meters. This can be useful for a variety of applications, including asset tracking and real-time location-based services.
Juniper Mist supports both of these use cases using a technology called vBLE that builds on BLE. vBLE uses a patented 16-element directional antenna array and most Juniper Mist access points have it built-in.
ZIGBEE
The IEEE standard for ZigBee is IEEE 802.15.4. It is a wireless protocol that is designed for short-range, low data rate, low power consumption, and low-cost applications. ZigBee was first introduced in 2003, and it has since become a popular option for home automation systems, smart lighting, and industrial automation. ZigBee operates in the multiple frequency bands including 868 MHz, 915 MHz and 2.4 GHz (most common) and supports data rates up to 250 kbps. ZigBee is well suited for applications that require low power consumption and long battery life.

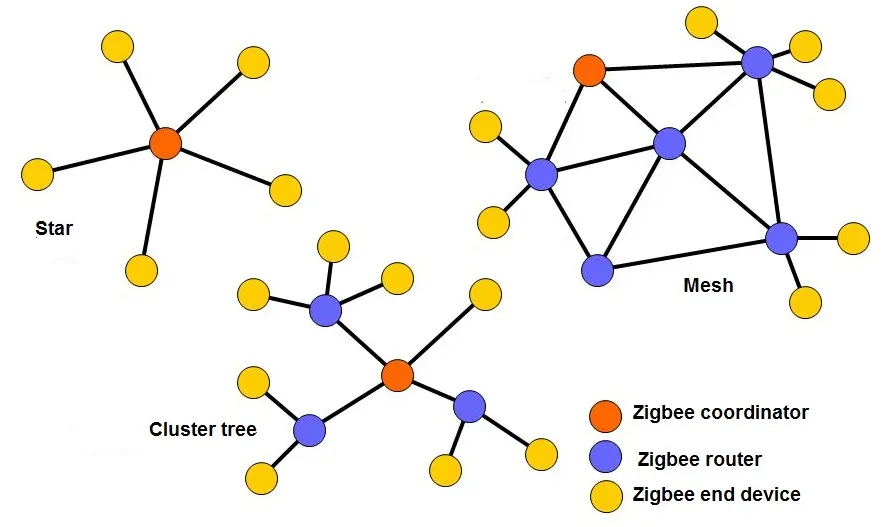

The ZigBee network layer supports star, tree, and mesh topologies. In a star topology, the network is controlled by one single device called the ZigBee coordinator. This device is responsible for initiating and maintaining the devices on the network. All other devices known as end devices, directly communicate with the ZigBee coordinator. In mesh and tree topologies, the ZigBee coordinator is responsible for starting the network and for choosing certain key parameters, but the network may be extended through the use of ZigBee routers.
THREAD

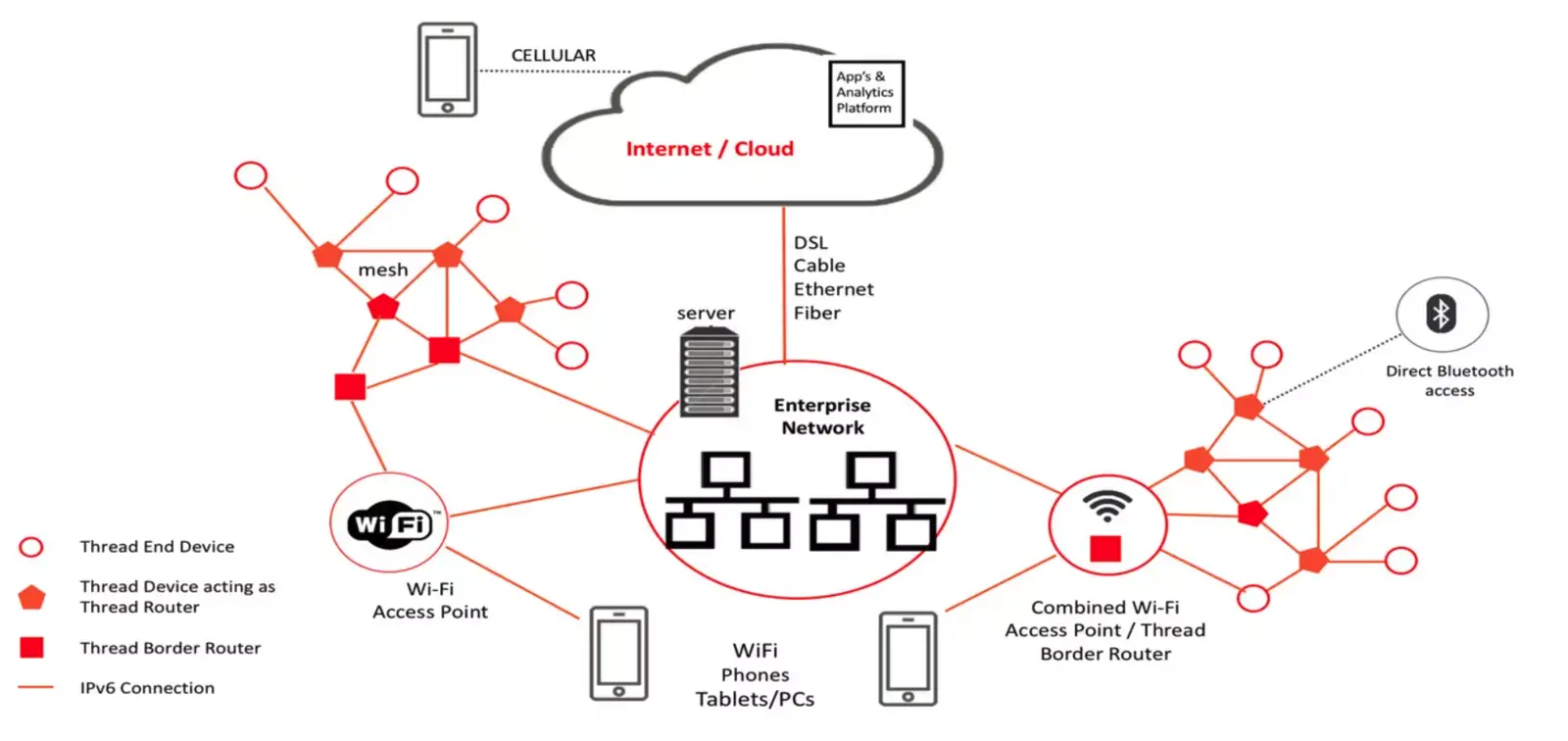

The IEEE standard for Thread is IEEE 802.15.4. It is a wireless protocol that is designed for IP-based (also supports IPv6 – 6LoWPAN) communication between devices. Thread was first introduced in 2014, and it has since become a popular option for smart home devices, such as thermostats and security systems. Thread operates in the 2.4 GHz frequency band and supports data rates up to 250 kbps. Thread enables device-to-device and device-to-cloud communications and reliably connects hundreds (or thousands) of products and includes mandatory security features; it uses AES encryption to secure communication between devices.
Thread networks have no single point of failure, can self-heal and reconfigure when a device is added or removed, and are simple to setup and use.
LORA
LoRa (Long Range) is a wireless protocol that is designed for machine-to-machine communication. LoRa was first introduced in 2011, and it has since become a popular option for smart city applications, such as smart parking, waste management, and environmental monitoring. LoRa operates in the sub-GHz frequency band and supports data rates up to 50 kbps. LoRa is well suited for applications that require long-range communication and low power consumption.
LoRa devices can communicate over distances of several kilometres, which makes it an attractive option for IoT applications that require long-range communication. Lora is also relatively easy to use and has a low implementation cost, which makes it an attractive option for small-scale IoT projects.
LORAWAN
LoRaWAN is a MAC protocol designed for long-range, low-power communication between IoT devices( it fits into Low-Power WAN or LPWAN category). It uses the LoRa modulation scheme to enable communication over distances of several kilometres. LoRaWAN employs a star-of-stars topology, where end devices communicate with gateways that are connected to a network server. The network server manages the network and routes messages between end devices and applications.

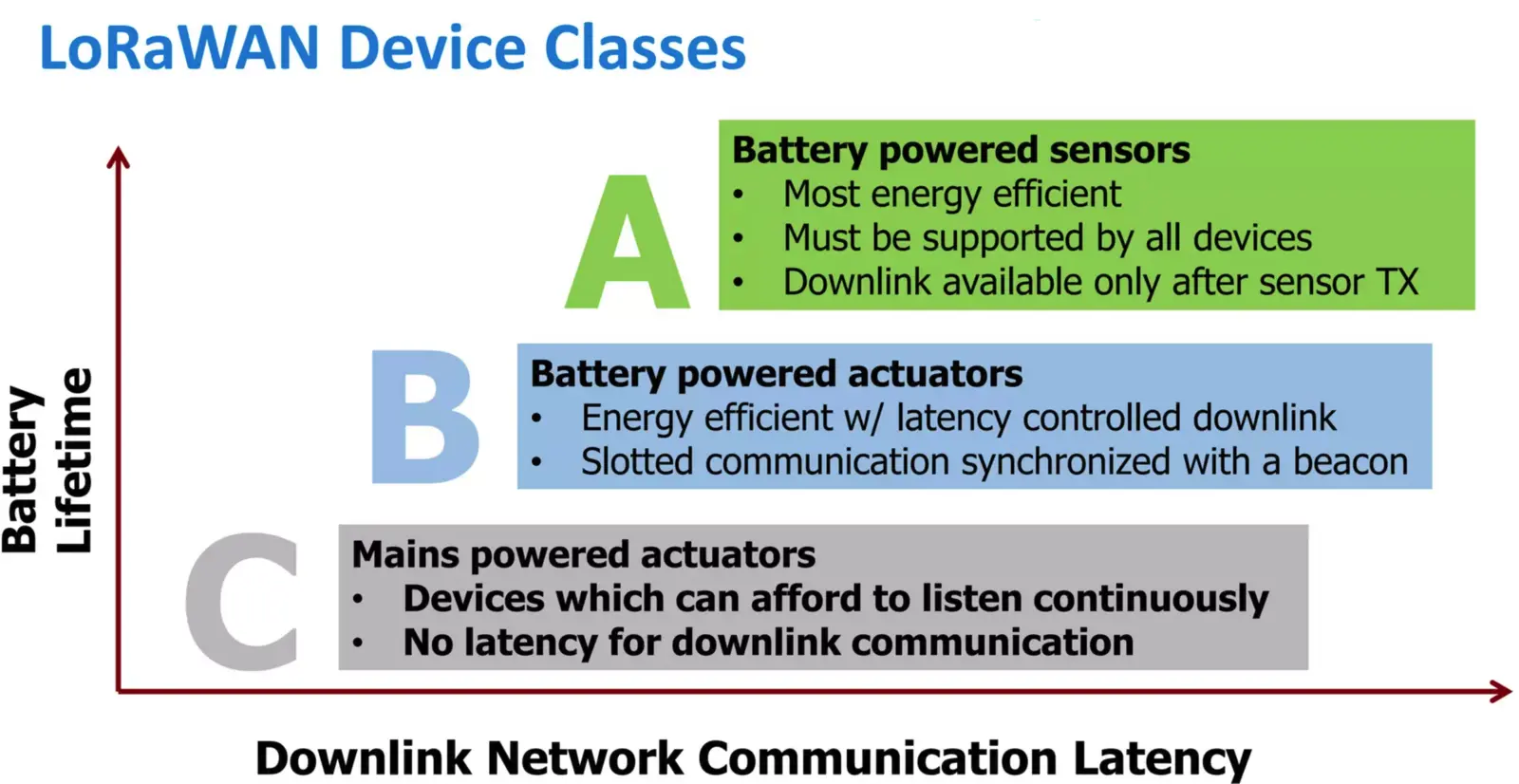

LoRaWAN supports three classes of devices, each with different power and latency requirements. However, all LoRaWAN devices must be able to perform Class A functionality at a minimum. This provides a baseline whereby all LoRaWAN devices will be able to perform at least minimal communications with all other LoRaWAN devices.
CLASS A
All devices support bi-directional communications such that an uplink transmission from an end-device is always followed by to short downlink receive window. Class A devices cannot receive communication from the network (downlink) except for the time during the receive window immediately after an uplink. These devices consumes the least power.
CLASS B
These devices provide more receive windows. A synchronization beacon is sent from the gateway to provide a scheduling for the received windows. These devices consume moderate power.
CLASS C
These devices have open receive windows. They are unable to receive when transmitting, but other than time, they continuously listen for messages from the network. Therefore, they consume the most power.
Source: LoRa Alliance
LoRaWAN uses an adaptive data rate (ADR) mechanism to optimize the data rate (from 0.3 kbps to 50 kbps) and power consumption of end devices. ADR adjusts the data rate and transmission power of end devices based on the quality of the communication link and the data rate requirements of the application.
LoRaWAN also includes security features such as end-to-end encryption, device authentication, and message integrity checking. These features ensure that communication between devices is secure and can only be accessed by authorized parties.
LoRaWAN operates in different frequency bands depending on the regulatory domain. These bands include 430 MHz, 433 MHz, 868 MHz, and 915 MHz in common use.
Overall, LoRaWAN is an attractive option for IoT applications that require long-range, low-power (a potential 10-20-year battery lifetime) communication and a large network infrastructure. Its open standard and growing ecosystem make it a popular choice among developers who want to build scalable and interoperable IoT solutions.

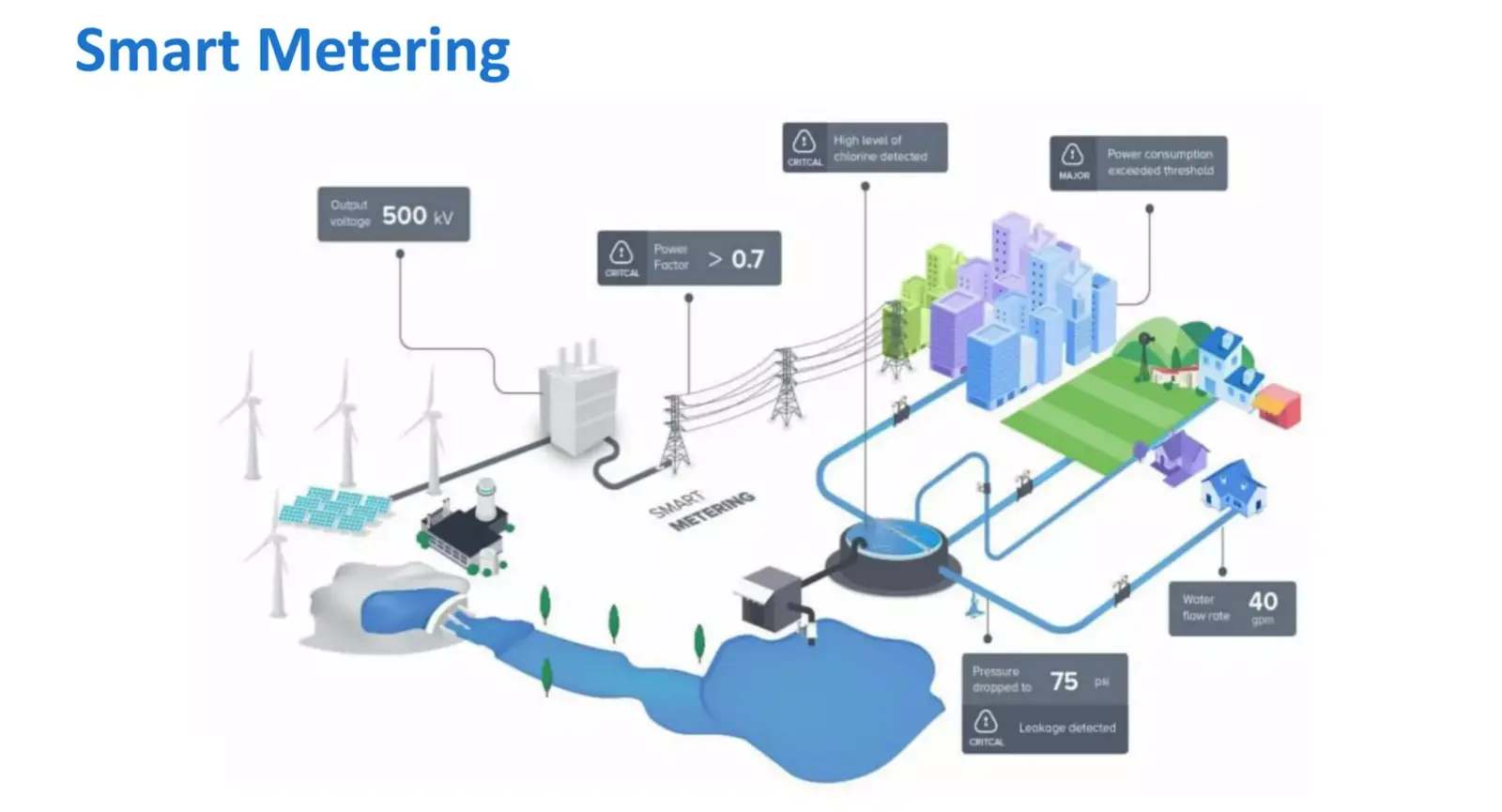

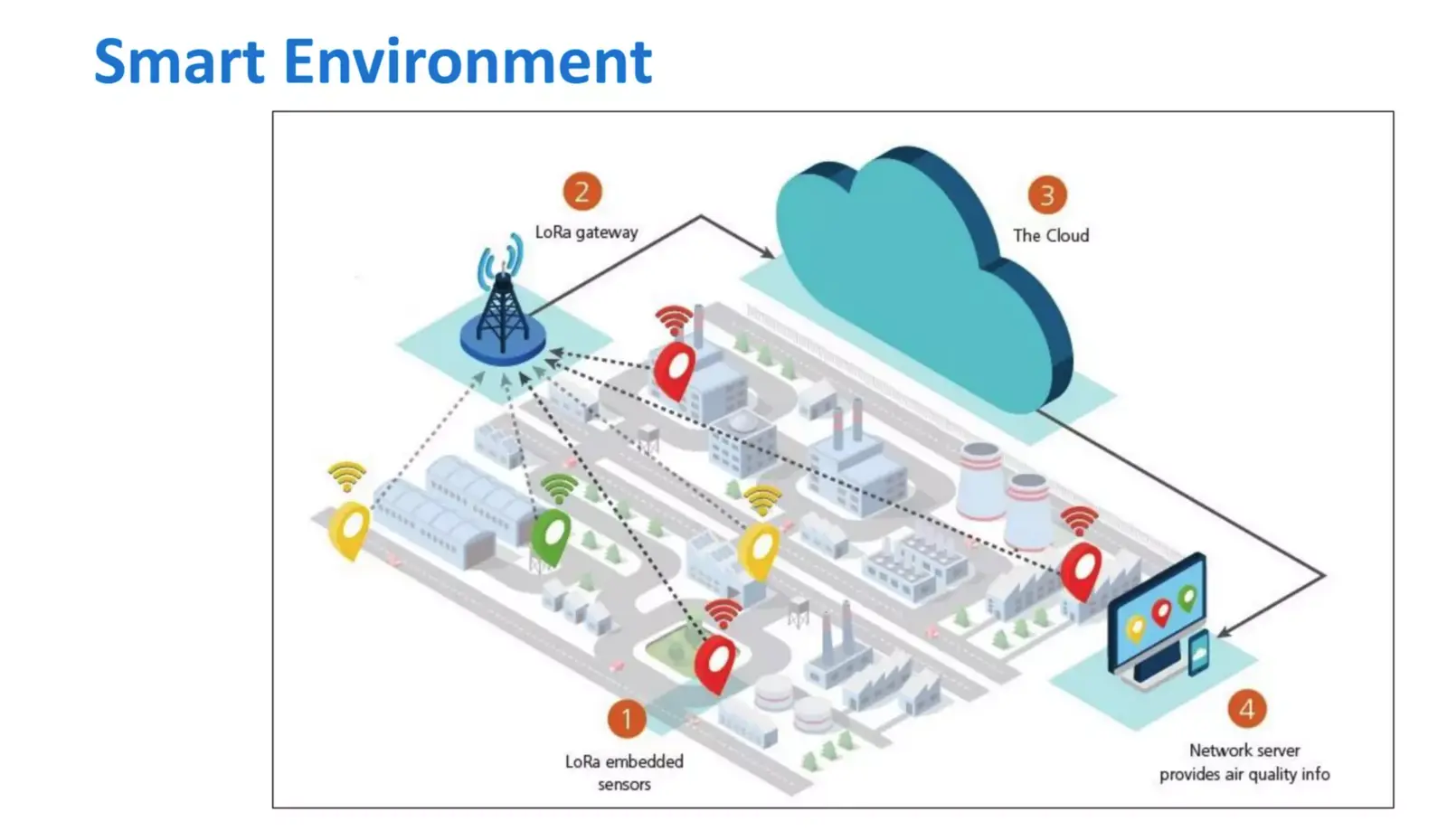

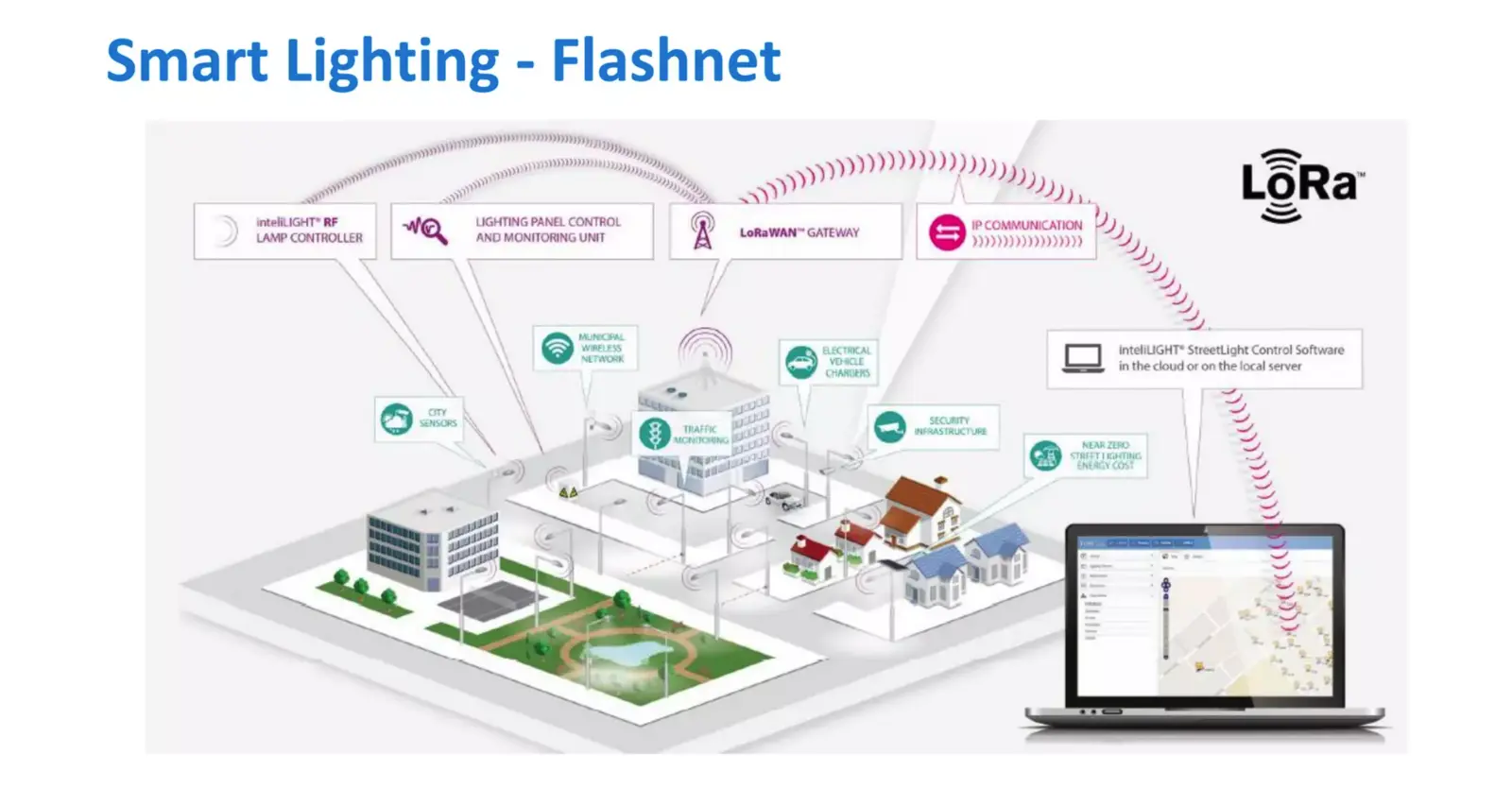

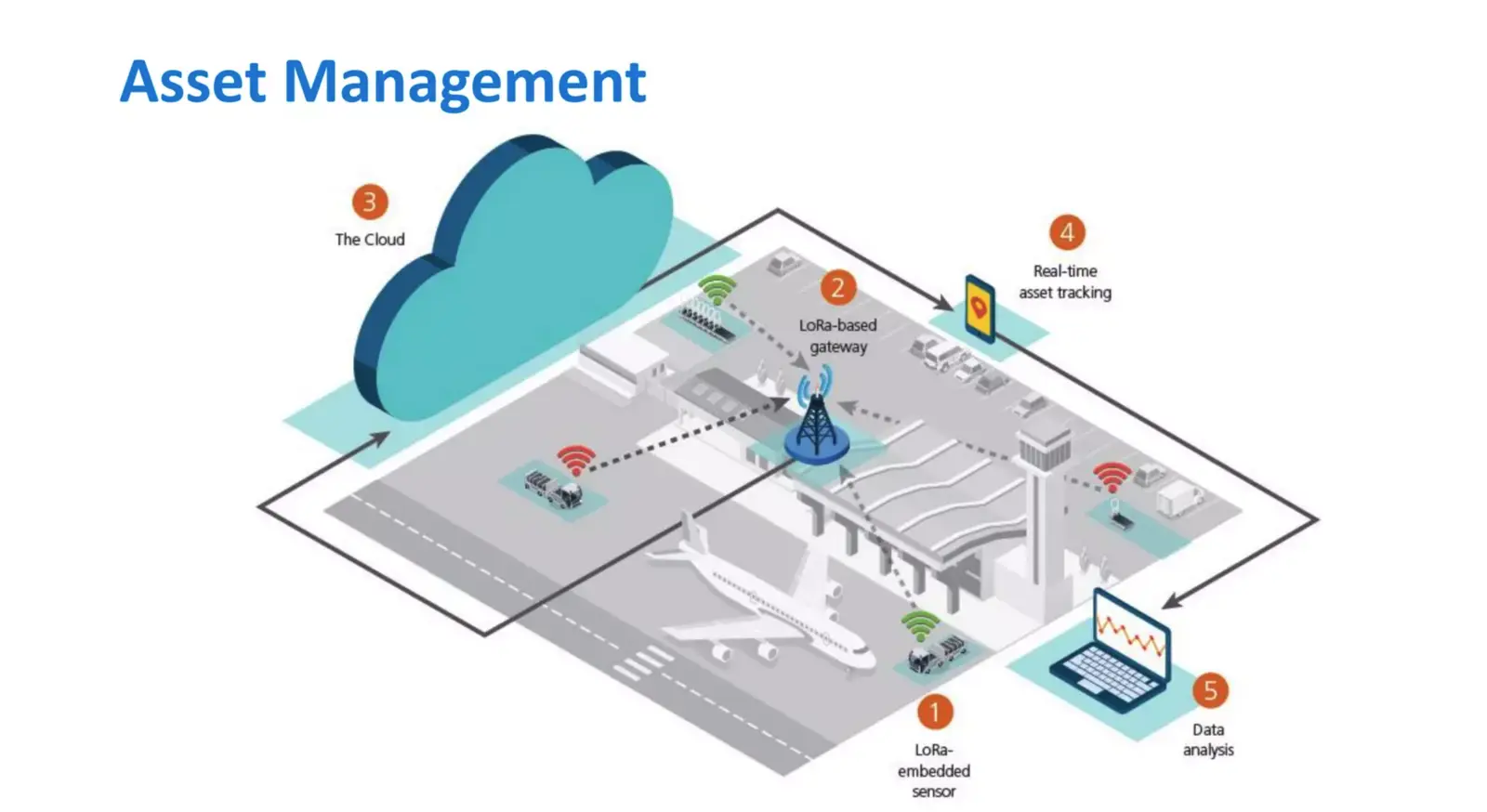

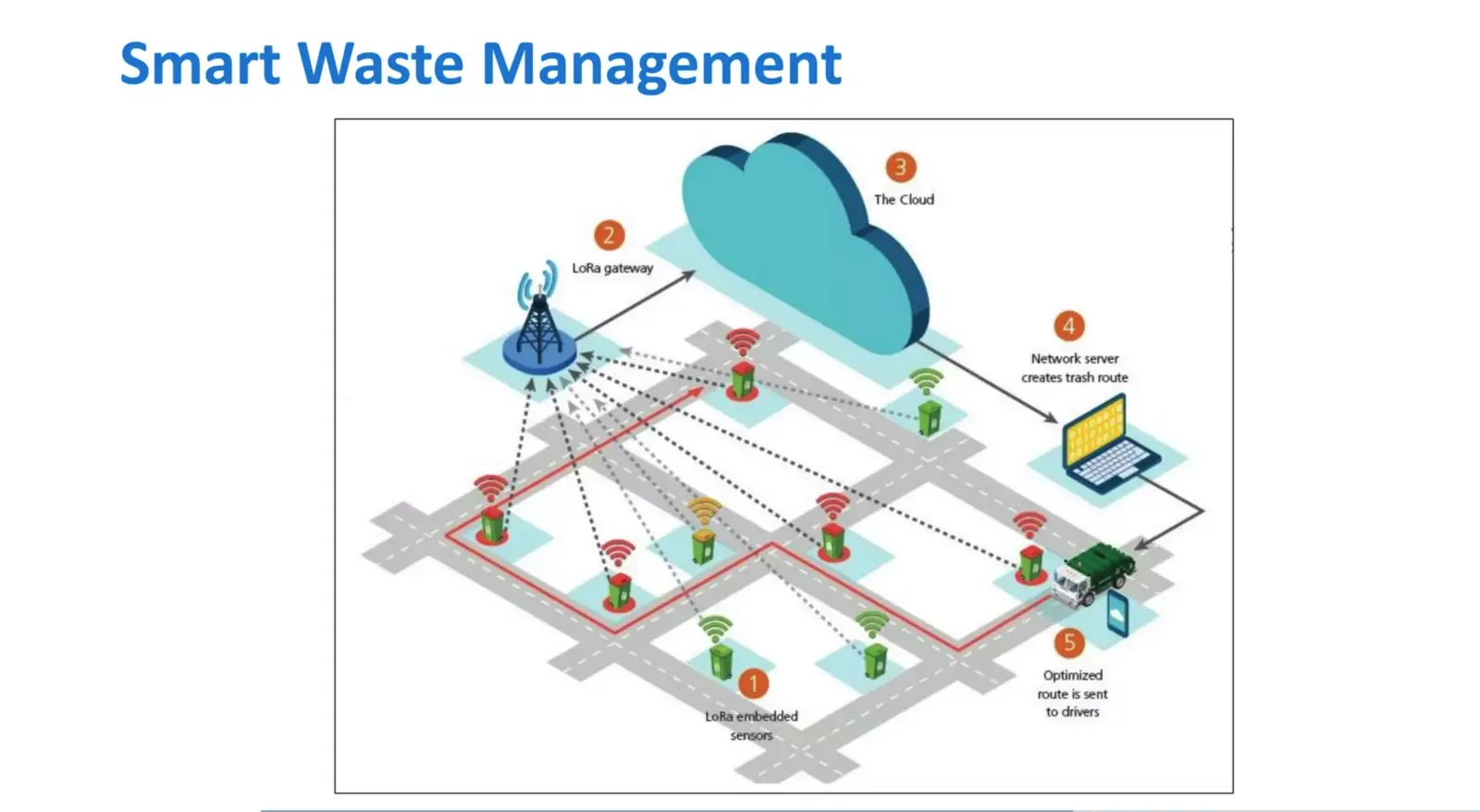

Here are some examples of LoRaWAN
LTE-M
LTE-M (LTE Machine Type Communication) is a cellular network protocol designed for IoT-type solutions. It is an LPWAN technology that provides low power consumption and up to 10 years of battery life. It operates in the licensed spectrum bands, which ensures high reliability and security.
In addition, LTE-M is designed to support massive IoT deployments, with the ability to handle up to tens of thousands of devices per cell. This makes it a suitable option for applications such as smart cities, smart homes, and industrial monitoring. Besides, it supports mobility. Devices can move seamlessly between cells without losing their connection, which is important for applications such as asset tracking and fleet management. Finally, LTE-M comprises of advanced security features, such as device authentication, encryption, and certificate management, which ensures that communication between devices is secure and can only be accessed by authorized parties.
CONCLUSION
In a nutshell, the choice of an IoT protocol depends on the specific requirements of the application. Each protocol has its own unique features and characteristics that make it suitable for different types of IoT applications. By understanding the strengths and weaknesses of each protocol, customers can choose the most appropriate protocol for their IoT project.
When considering which IoT protocol to use, it is important to keep in mind the specific requirements of your project. For example, if your project requires long range communication, LoRa may be the best option. On the other hand, if your project requires a large number of devices, ZigBee may be the better choice.
It is also important to consider factors such as power consumption, data rate, and security when choosing an IoT protocol. For example, if your project requires periodic data transmission and low power consumption, BLE may be the best option. If your project requires secure communication, Thread may be the better choice.
Another important factor to consider when choosing an IoT protocol is interoperability. Interoperability refers to the ability of devices from different manufacturers to communicate with each other. Interoperability is important because it allows customers to choose the best devices for their projects, regardless of the manufacturer.
In recent years, there has been a push toward standardization in the IoT industry. Standards such as the Open Connectivity Foundation (OCF) and the Thread Group have been developed to promote interoperability between devices. By following these standards, developers can ensure that their devices will work with other devices in the same ecosystem.
